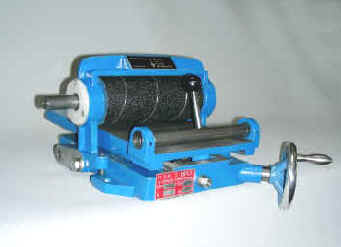

Shaping appliances model AG 16
driven by external motor

Shaping appliances provide precise shaping of belt ends  which must be sticked together in order to increases the sticking surface and tensile strength.

F.M.T.-BELT  Transmission Technology
Untere Gewerbe Str. 28
D 77791 Berghaupten
tel: 0049 7803 9287250
fax: 0049 7803  9287252

max. belt width: 160mm

weight: 12kg.
required rotation at the driving shaft:  approx..600 bis 800 UPM
shaft diameter: 16mmØ
