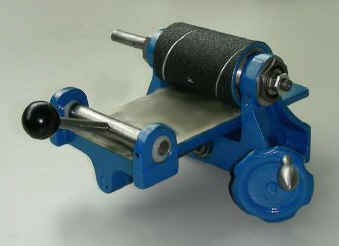

Shaping appliances model AG 8
driven by external motor

Shaping appliances provide precise shaping of belt ends  which must be sticked together in order to increases the sticking surface and tensile strength.

F.M.T.-BELT  Transmission Technology
Untere Gewerbe Str. 28
D 77791 Berghaupten
tel: 0049 7803 9287250
fax: 0049 7803  9287252

max belt width 80 mm
weight: 3kg.
required rotation at the driving shaft:  approx..600 bis 800 UPM
shaft diameter: 12mmØ
